Android/Apple car play on CIC retrofit

aus335iguy

Colonel
Nov 18, 2017
2,251
805
0
Down under
Ride
335i DCT 2009
After retrofitting a combox and coding full connected drive on my CIC im more than a little disappointed with how the phone integrates, displays and works.

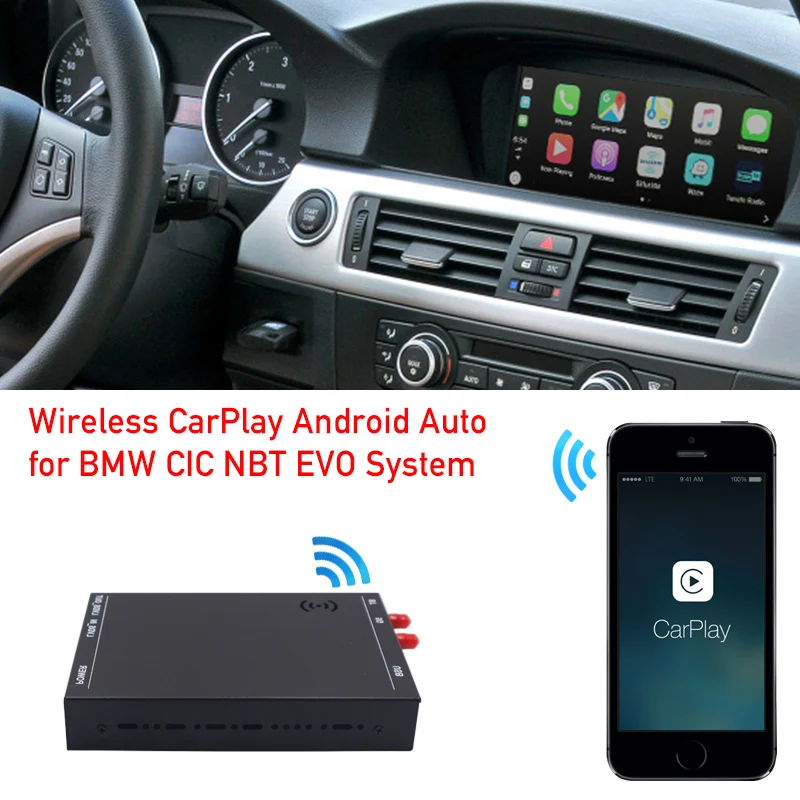

I watched a YouTube video recently about an android box and as i understand it bimmertek do one.
anyone have any experience with these? They’re cheap enough from eBay/AliExpress i may give one a try...they dont mention specs though in a lot of the ads...


houtan

Lieutenant
Nov 2, 2017
629
312
0
Ride
135i N55 DCT; PS2
Yeah I have watched that video many times and still not sure lol. He does a follow up video as well I believe. Sometimes they put a link in their description to the product they are using. Searching Ali express is confusing to me.


aus335iguy

Colonel
Nov 18, 2017
2,251
805
0
Down under
Ride
335i DCT 2009
So install was pretty easy - Its all plug and play.
I tucked the unit in above the cic, behind the HVAC controls Its tight in there.... So tight i had to cut the CIC unit frame and it still isnt quite right...

electrically the thing intercepts all of the wiring to the CIC(bar the antennas and MOST bus). I got a little scared when i first hooked the unit up and got a red screen. Eventually though(im not sure what it was that i did that made it work but it did) i got it on and in
CAN bus connection... theres a number of different options but ill post a pic of the ones i used
Works amazing. Pressing the voice control on the steering wheel and getting Siri is the best thing ever.
Integration with the idrive controller is seamless. I have audio routed to the car directly via my bluetooth

PS audio quality via apple music with the settings set to max quality is far superior to spotify.
Sooooooo good. Much recommend :D


Attachments

  • E04D743C-E296-4A89-AD32-17422079AC8D.jpeg
    340.3 KB · Views: 235
  • 6BE070B0-A3C7-4AF5-9A00-810B07F24A33.jpeg
    250.3 KB · Views: 185
  • 88F4153D-1E7A-4BA1-B42D-F277E052E8D9.jpeg
    273.3 KB · Views: 194
  • 47294AE3-CB95-4135-A114-655D38CAF1A2.jpeg
    214.5 KB · Views: 223
  • C1201B52-BCED-4E48-B33E-2CCB109A370E.jpeg
    223 KB · Views: 216

aus335iguy

Colonel
Nov 18, 2017
2,251
805
0
Down under
Ride
335i DCT 2009
  • Like
Reactions: derekgates

houtan

Lieutenant
Nov 2, 2017
629
312
0
Ride
135i N55 DCT; PS2
Thanks. Need to figure out if it’ll fit in a 1 series.


aus335iguy

Colonel
Nov 18, 2017
2,251
805
0
Down under
Ride
335i DCT 2009
Thanks. Need to figure out if it’ll fit in a 1 series.
Id say theres room some where and even if you had to put it under a seat or in the console id say this is worth it. One of the best modifications Ive made to this car.


aus335iguy

Colonel
Nov 18, 2017
2,251
805
0
Down under
Ride
335i DCT 2009
So been living with this and it’s still one of the top mods I’ve done.
Issues of note.
1 For some reason in google maps when I hit the dictation button the Bluetooth audio stops streaming. The only way I know to reconnect is to re-pair with apple car play and then it’ needs to be forced to re pair to the combox in the car via bluetooth
2 After listening to Spotify if I exit the car and lock it up and come back it defaults to Apple Music. I need to select Spotify and take up where o left off
3 steering wheel buttons work but they are reversed when compared to original ie original down=next track and up is begin track again/ previous track. CarPlay next track is up button
4 audio directions for google maps isn’t coming through but is for apple maps

now for the good
1 If you only use apple native maps and music it would work pretty well I’d say
2 Siri integration is next level convenient
3 full screen maps is awesome
4 iDrive control and shortcuts are super convenient

  • Like
Reactions: houtan

kd7iwp

New Member
Dec 19, 2020
6
0
0
I got one of these after doing my CIC retrofit and love it. Only problem I encountered is that using the CAN bus wires from the iDrive knob did not work, my iDrive knob became unresponsive. The CarPlay box is working fine using the CANbus wires from the CIC unit but it does prevent you from being able to do further coding of your CIC unit. I've had to open the dash (quick and easy) and temporarily unplug the CarPlay box a few times to code things like HD radio, live traffic, etc. on my CIC and then plug it back in afterwards. I've heard this is not a problem if you use the iDrive knob CANbus wires.


martymil

Major General
Sep 6, 2017
3,331
1,907
0
Down Under
Ride
S65 1m
I'm using the Andream unit on my CIC in my 1m which works really well and looks the same as the one OP posted.

I got mine for 340 aud landed which was quite cheap.

Waze works well except wont go into dark mode for some reason even if set to default.

Thats the only glitch i found so far.

Jiust waiting on bimmer geeks to fix the live gauges for the s65, should be no issue with n54


Last edited:

Anon1

Lurker
Apr 13, 2019
10
18
0
Ride
2013 135i DCT
Thanks. Need to figure out if it’ll fit in a 1 series.
I have it running in my 2013 135i.
I paid $156USD on AliExpress.
I fit the unit in the glove box.

Let know if you have any questions.
